# ElectricBreeze-1

<details>

<summary><a href="https://app.hackthebox.com/sherlocks/ElectricBreeze-1/"><strong>Sherlock Scenario</strong></a></summary>

{% hint style="info" %}
Your security team must always be up-to-date and aware of the threats targeting organizations in your industry. As you begin your journey as a Threat Intelligence Intern, equipped with some SOC experience, your manager has assigned you a task to test your research skills and how effectively you can leverage the MITRE ATT\&CK framework. \* Conduct thorough research on Volt Typhoon. \* Use the MITRE ATT\&CK framework to map adversary behavior and tactics into actionable insights. Impress your manager with your assessment, showcasing your passion for threat intelligence.
{% endhint %}

</details>

{% stepper %}
{% step %}

## Based on MITRE's sources, since when has Volt Typhoon been active?

Our primary goal is to find the answer within the specific source they've pointed us to: the MITRE ATT\&CK framework. The most reliable way to answer a question about a specific framework is to go directly to its official source. In this case, that's the MITRE ATT\&CK website. The MITRE ATT\&CK website has a search function. Since the question is about "Volt Typhoon," that's the keyword we'll use.

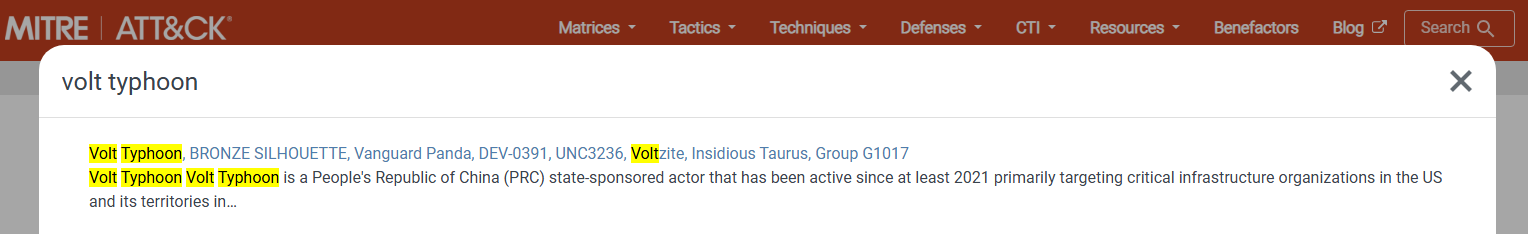

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FLlnbKW32klkykHS7eU4e%2Fimage.png?alt=media&#x26;token=ce8ecb73-91c5-4e9a-b069-32f9b6b717e7" alt=""><figcaption><p><a href="https://attack.mitre.org/groups/G1017/">https://attack.mitre.org/groups/G1017/</a></p></figcaption></figure>

The description on this page is very clear:

> Volt Typhoon is a People's Republic of China (PRC) state-sponsored actor that has been active since at least **2021** primarily targeting critical infrastructure organizations in the US and its territories including Guam.

{% hint style="success" %}
Based on MITRE's sources, Volt Typhoon has been active since at least **2021**.
{% endhint %}
{% endstep %}

{% step %}

## MITRE identifies two OS credential dumping techniques used by Volt Typhoon. One is LSASS Memory access (T1003.001). What is the Attack ID for the other technique?

On the Volt Typhoon page, we need to find the matrix or table that shows their associated techniques. By examining the "Techniques Used" matrix on the Volt Typhoon page, we can see the second method listed under OS Credential Dumping.

For a faster, scriptable approach, you can query MITRE's data directly. This is perfect for automation and advanced analysis.

1. **Get the Group's JSON data:** Use curl to download the ATT\&CK layer for Volt Typhoon (G1017).
2. **Filter with jq:** Pipe the JSON output to jq, a command-line JSON processor, to filter for the specific technique.

{% code title="command" overflow="wrap" fullWidth="false" %}

```bash
curl -s "https://attack.mitre.org/groups/G1017/G1017-enterprise-layer.json" | jq '.techniques[] | select(.techniqueID | test("^T1003"))'
```

{% endcode %}

* `curl -s ...`: Silently fetches the data from the URL.
* `jq '.techniques[] ...'`: Tells `jq` to look inside the "techniques" array.
* `select(.techniqueID | test("^T1003"))`: Selects only those techniques whose ID starts with "T1003".

{% code title="output" %}

```json
{
  "techniqueID": "T1003",
  "showSubtechniques": true
}
{
  "techniqueID": "T1003.001",
  "comment": "[Volt Typhoon](https://attack.mitre.org/groups/G1017) has attempted to access hashed credentials from the LSASS process memory space.(Citation: Microsoft Volt Typhoon May 2023)(Citation: CISA AA24-038A PRC Critical Infrastructure February 2024)\n",
  "score": 1,
  "color": "#66b1ff",
  "showSubtechniques": true
}
{
  "techniqueID": "T1003.003",
  "comment": "[Volt Typhoon](https://attack.mitre.org/groups/G1017) has used ntds.util to create domain controller installation media containing usernames and password hashes.(Citation: Microsoft Volt Typhoon May 2023)(Citation: Joint Cybersecurity Advisory Volt Typhoon June 2023)(Citation: Secureworks BRONZE SILHOUETTE May 2023)(Citation: CISA AA24-038A PRC Critical Infrastructure February 2024)\n",
  "score": 1,
  "color": "#66b1ff",
  "showSubtechniques": true
}
```

{% endcode %}

{% hint style="success" %}
Your output clearly shows the two sub-techniques: T1003.001 (LSASS Memory) and **T1003.003** (NTDS), confirming the answer is correct.
{% endhint %}
{% endstep %}

{% step %}

## Which database is targeted by the credential dumping technique mentioned earlier?

We identified the technique as **T1003.003**, which MITRE ATT\&CK® defines as "OS Credential Dumping: NTDS". The answer is right there in the name of the technique itself. Our next step is to understand what "NTDS" refers to. A quick search for "NTDS" in the context of Windows and cybersecurity will give us a very clear answer.

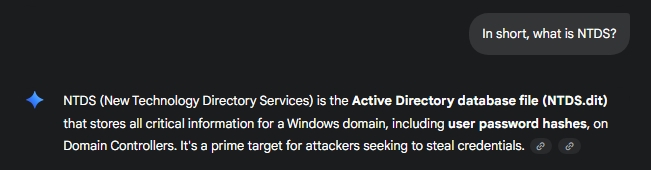

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FErsM5UCm1XYAxK4z6uZy%2FCaptura%20de%20tela_27-7-2025_233630_gemini.google.com.jpeg?alt=media&#x26;token=bed7be85-07a6-4f59-95ff-178b1706a29f" alt="NTDS (New Technology Directory Services) is the **Active Directory database file (NTDS.dit)** that stores all critical information for a Windows domain, including **user password hashes**, on Domain Controllers. It&#x27;s a prime target for attackers seeking to steal credentials."><figcaption></figcaption></figure>

"NTDS" stands for **NT Directory Services**. The technique targets the core database for Microsoft's **Active Directory**. This database is stored in a file called **ntds.dit**. This single file, located on a domain controller, is the crown jewel for attackers because it contains a wealth of information, most importantly:

* **User account details** for the entire domain.
* **Password hashes** for every user.

When an adversary like Volt Typhoon gets a copy of the ntds.dit file, they can take it offline and use tools to crack the password hashes. This can give them valid credentials, including those of high-privilege Domain Administrators, allowing them to gain complete control over the network.

{% hint style="success" %}
The credential dumping technique T1003.003 specifically targets the **Active Directory** database, which is contained within the **ntds.dit** file on a domain controller.
{% endhint %}
{% endstep %}

{% step %}

## Which registry hive is required by the threat actor to decrypt the targeted database?

An attacker can steal the ntds.dit file, but the password hashes within it are encrypted. To make them usable, the attacker needs the key that was used to encrypt them. This key is often referred to as the **Boot Key** or **System Key**.

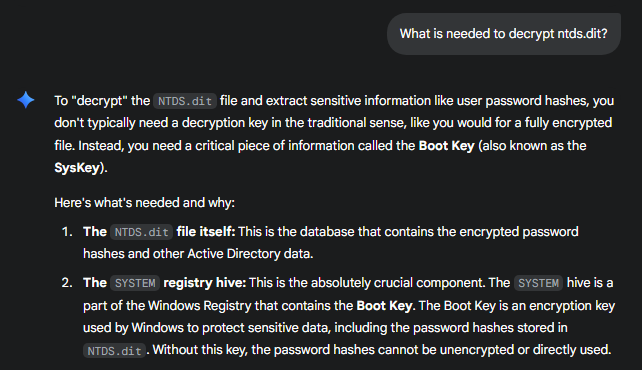

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2F2f8lP10696v2AHTRDGQ8%2Fimage.png?alt=media&#x26;token=7407b92a-d06f-4b3f-9fdc-f1a304d11832" alt="To &#x22;decrypt&#x22; the NTDS.dit file and extract sensitive information like user password hashes, you don&#x27;t typically need a decryption key in the traditional sense, like you would for a fully encrypted file. Instead, you need a critical piece of information called the Boot Key (also known as the SysKey).  Here&#x27;s what&#x27;s needed and why:  The NTDS.dit file itself: This is the database that contains the encrypted password hashes and other Active Directory data.  The SYSTEM registry hive: This is the absolutely crucial component. The SYSTEM hive is a part of the Windows Registry that contains the Boot Key. The Boot Key is an encryption key used by Windows to protect sensitive data, including the password hashes stored in NTDS.dit. Without this key, the password hashes cannot be unencrypted or directly used."><figcaption></figcaption></figure>

That critical key is stored within the Windows Registry. Specifically, it resides in the **SYSTEM** registry hive. The physical file for this hive is located at `C:\Windows\System32\config\SYSTEM`. Therefore, for the attack to be successful, a threat actor must exfiltrate **two files** from the domain controller:

1. The Active Directory database: `ntds.dit`
2. The registry hive containing the key: `SYSTEM`

With both of these files, the attacker can go offline and use tools like Impacket's secretsdump.py or Mimikatz to extract the password hashes from the database for cracking or use in pass-the-hash attacks.

{% hint style="success" %}
The threat actor requires the **SYSTEM** registry hive to decrypt the targeted ntds.dit database.
{% endhint %}
{% endstep %}

{% step %}

## During the June 2024 campaign, an adversary was observed using a Zero-Day Exploitation targeting Versa Director. What is the name of the Software/Malware that was used?

We need to pivot from the general knowledge of the MITRE ATT\&CK framework to specific, time-sensitive threat intelligence reporting.

1. Deconstruct the Request
   1. **Timeframe:** June 2024
   2. **Target:** Versa Director (a network management product)
   3. **Attack Type:** Zero-Day Exploitation
   4. **Goal:** Identify the name of the **Software/Malware** used by the adversary.

Our search queries need to be precise to find the right security advisories or blog posts. Good queries would be:

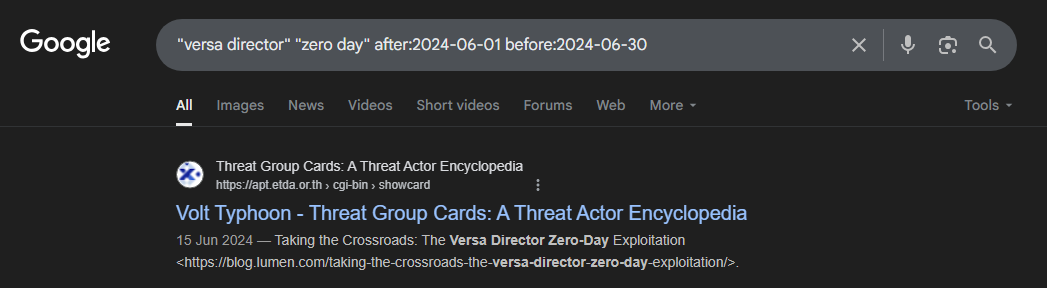

* "versa director" "zero day" after:2024-06-01 before:2024-06-30

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FefDFZPha1OYqCXa0KUEG%2Fimage.png?alt=media&#x26;token=255e419f-03b2-4ea5-b78d-febd7a526cf7" alt=""><figcaption></figcaption></figure>

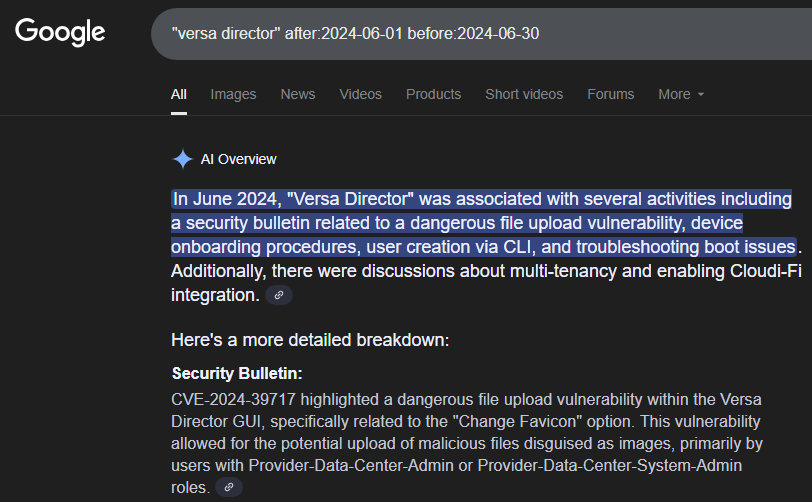

* "versa director" after:2024-06-01 before:2024-06-30

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FRdKY5ArJZfn450hhBm2P%2Fimage.png?alt=media&#x26;token=d852a427-2e74-41ce-801f-03308fc0908b" alt="" width="563"><figcaption></figcaption></figure>

The search results are very clear and point to a specific campaign. Here's what we can synthesize from the reports:

* **The Vulnerability:** Security researchers discovered a zero-day vulnerability in Versa Director. It has since been assigned **CVE-2024-39717**.
  * <https://apt.etda.or.th/cgi-bin/showcard.cgi?g=Volt%20Typhoon>
  * <https://blog.lumen.com/uncovering-the-versa-director-zero-day-exploitation/>
  * <https://versa-networks.com/blog/versa-security-bulletin-update-on-cve-2024-39717-versa-director-dangerous-file-type-upload-vulnerability/>
* **The Attacker:** The campaign has been attributed with moderate confidence to the Chinese state-sponsored group **Volt Typhoon**.
* **The Malware:** To exploit the vulnerability, the attackers deployed a sophisticated and custom-tailored Java web shell. The malware has two names associated with it:
  * Its internal name, found within the code, is "Director\_tomcat\_memShell".
  * The name given to it by the researchers at Black Lotus Labs is **VersaMem**.

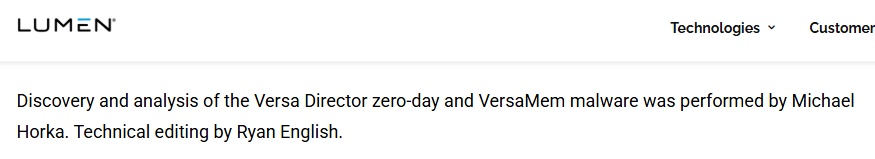

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FivnTGxHGWwYFiKGt28wV%2Fimage.png?alt=media&#x26;token=9f79f1b5-bcc8-47b8-9988-42b1302e15cb" alt="" width="563"><figcaption></figcaption></figure>

By analyzing timely threat intelligence reports regarding the zero-day exploit (CVE-2024-39717), we can identify the specific tool used.

{% hint style="success" %}
The software/malware used in the attack is a custom web shell named **VersaMem**.
{% endhint %}
{% endstep %}

{% step %}

## According to the Server Software Component, what type of malware was observed?

The primary function of VersaMem is to give the attacker persistent, remote access to the compromised server. It runs in memory and listens for commands, effectively providing the attacker with a "shell" on the target machine through the web server.

A piece of malware with this functionality is known as a **Web Shell**. The malware's internal name, "Director\_tomcat\_memShell," further confirms this classification.

{% hint style="success" %}
The type of malware observed was a **Web Shell**.
{% endhint %}
{% endstep %}

{% step %}

## Where did the malware store captured credentials?

Let's look for Lumen's technical reports detailing the "CapturePassTransformer – Password Harvesting" section. The malware executes the following command: `/bin/bash -c grep -q {encoded-creds} /tmp/.temp.data || echo {encoded-creds} /tmp/.temp.data`. This command first checks if the encrypted and encoded credentials already exist in the file `/tmp/.temp.data`. If they do not, it appends them to that file.

{% hint style="success" %}
The malware stored captured credentials in the **/tmp/.temp.data** file.
{% endhint %}
{% endstep %}

{% step %}

## According to MITRE’s reference, a Lumen/Black Lotus Labs article (Taking The Crossroads: The Versa Director Zero-Day Exploitaiton.), what was the filename of the first malware version scanned on VirusTotal?

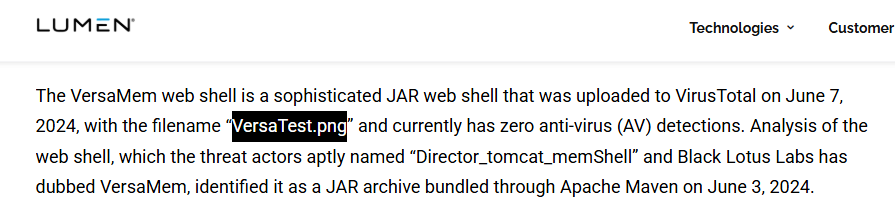

> The VersaMem web shell is a sophisticated JAR web shell that was uploaded to VirusTotal on June 7, 2024, with the filename “VersaTest.png” and currently has zero anti-virus (AV) detections.

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FSCDpjvBiyTeyqIk7wfB3%2Fimage.png?alt=media&#x26;token=78536c9a-881c-472d-beb8-2b32d647a745" alt=""><figcaption></figcaption></figure>

{% hint style="success" %}
The filename of the malware uploaded to VirusTotal was **VersaTest.png**
{% endhint %}
{% endstep %}

{% step %}

## What is the SHA256 hash of the file?

Every good threat intelligence report will have a dedicated section at the end titled **"Indicators of Compromise" (IoCs)** or a similar name. This is where they list the technical details like file hashes, IP addresses, and domain names associated with the attack.

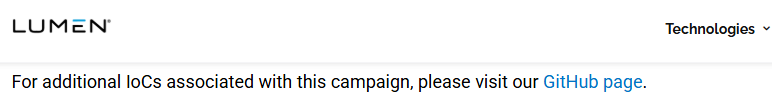

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FTOUGQxZajAqmwvHSSKZt%2Fimage.png?alt=media&#x26;token=1b1d92cc-4a64-4e49-adab-1d8aa4b01f8d" alt=""><figcaption><p><a href="https://github.com/blacklotuslabs/IOCs/blob/main/VersaMem_IOCs.txt">https://github.com/blacklotuslabs/IOCs/blob/main/VersaMem_IOCs.txt</a></p></figcaption></figure>

The Lumen/Black Lotus Labs report provides the SHA256 hash, which serves as a unique identifier for the VersaTest.png file. Finding this IoC is critical for detection and response.

<pre data-title="VersaMem_IOCs.txt"><code>
Yara Rules
rule VersaMem_JAR_Webshell {
    strings:
        $s1 = "org.apache.catalina.startup.Bootstrap"
        $s2 = "com.versa.vnms.ui.TestMain"
        $s3 = "/tmp/.java_pid"
        $s4 = "CoreClassFileTransformer"
        $s5 = "WriteTestTransformer"
        $s6 = "CapturePassTransformer"
        $s7 = "setUserPassword"
        $s8 = "captureLoginPasswordCode"
        $s9 = "com/versa/vnms/ui/services/impl/VersaAuthenticationServiceImpl"
        $s10 = "org/apache/catalina/core/ApplicationFilterChain"
        $s11 = "/tmp/.temp.data"
        $s12 = "getInsertCode"
        $s13 = "VersaMem"
        $s14 = "Versa-Auth"

    condition:
        filesize &#x3C; 5MB and 3 of them
}

IOCs
</strong><strong>4bcedac20a75e8f8833f4725adfc87577c32990c3783bf6c743f14599a176c37
</strong>
Filepaths:
/tmp/.temp.data
</code></pre>

{% hint style="success" %}
The SHA256 hash of the file is  **4bcedac20a75e8f8833f4725adfc87577c32990c3783bf6c743f14599a176c37**.
{% endhint %}
{% endstep %}

{% step %}

## According to VirusTotal, what is the file type of the malware?

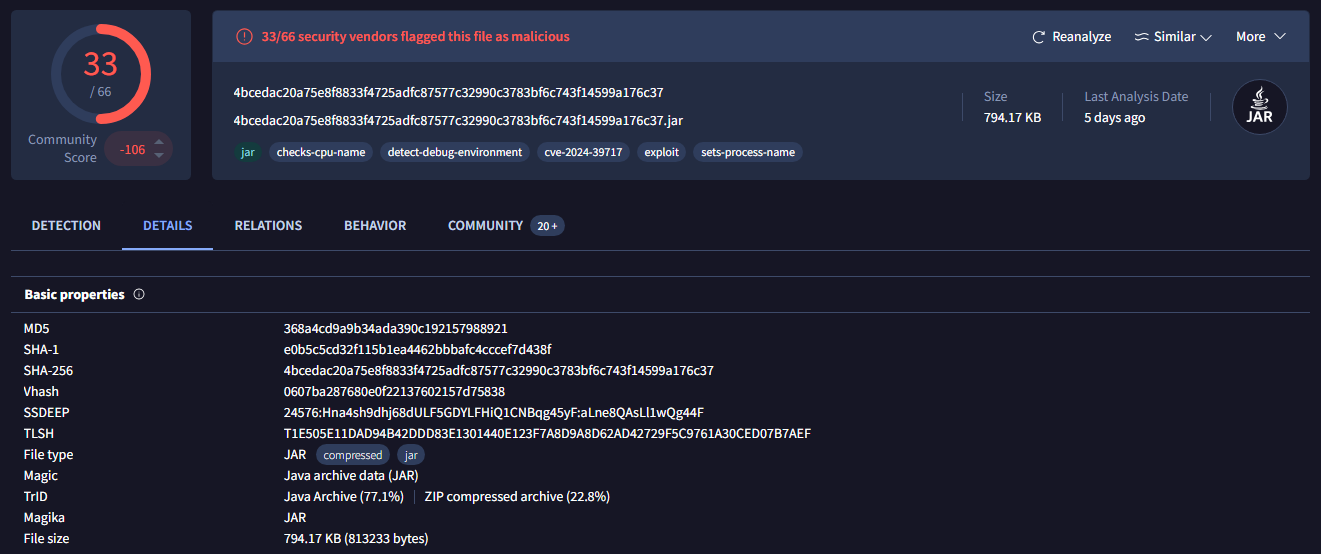

We have the file's SHA256 hash. This is the perfect piece of information to use for a lookup on VirusTotal, as it's unique to that specific file.

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2Fuen5hOPBvpnrYwoB1XD4%2Fimage.png?alt=media&#x26;token=421b292b-0673-47d6-91c7-03839263ea5d" alt=""><figcaption><p><a href="https://www.virustotal.com/gui/file/4bcedac20a75e8f8833f4725adfc87577c32990c3783bf6c743f14599a176c37/details">https://www.virustotal.com/gui/file/4bcedac20a75e8f8833f4725adfc87577c32990c3783bf6c743f14599a176c37/details</a></p></figcaption></figure>

The search results confirm that VirusTotal identifies the file as a **ZIP archive**, because the JAR (Java Archive) format is built on the ZIP file format. More specifically, it is a **Java Archive (JAR)**.

{% hint style="success" %}
According to VirusTotal, the file type is Java Archive (**JAR**).
{% endhint %}
{% endstep %}

{% step %}

## What is the 'Created by' value in the file's Manifest according to VirusTotal?

This requires us to dive deeper into the file's metadata as analyzed by VirusTotal. The `MANIFEST.MF` file in a JAR is a rich source of information about how it was built.

<pre data-title="Manifest"><code>Manifest-Version: 1.0
Archiver-Version: Plexus Archiver
<strong>Created-By: Apache Maven 3.6.0
</strong>Built-By: versa
Build-Jdk: 11.0.19
Agent-Class: com.versa.vnms.ui.TestMain
Can-Redefine-Classes: true
Can-Retransform-Classes: true
Main-Class: com.versa.vnms.ui.TestMain
Premain-Class: com.versa.vnms.ui.TestMain
</code></pre>

{% hint style="success" %}
The 'Created by' value in the file's Manifest is **Apache Maven 3.6.0**.
{% endhint %}
{% endstep %}

{% step %}

## What is the CVE identifier associated with this malware and vulnerability?

When a security vulnerability like this is discovered by researchers (in this case, Lumen's Black Lotus Labs), they report it to the software vendor (Versa Networks). A unique identifier is then requested from the CVE Program to track this specific vulnerability publicly. This identifier is the CVE number.

* <https://cve.mitre.org/cgi-bin/cvename.cgi?name=CVE-2024-39717>

{% hint style="success" %}
The CVE identifier associated with this vulnerability is **CVE-2024-39717**.
{% endhint %}
{% endstep %}

{% step %}

## According to the CISA document referenced by MITRE, what is the primary strategy Volt Typhoon uses for defense evasion?

The CISA document gives a very clear and direct answer in its first sentence on the topic.

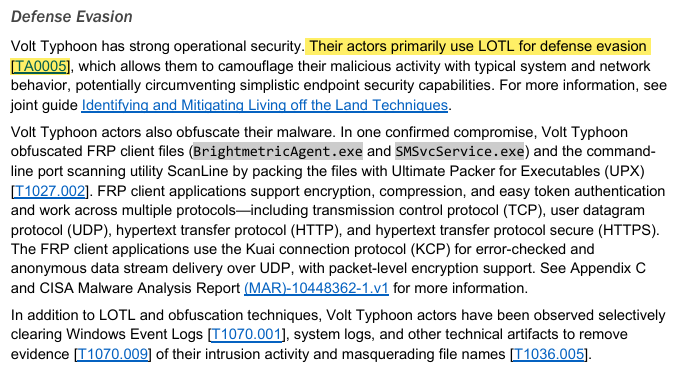

> Their actors **primarily use LOTL for defense evasion** \[TA0005], which allows them to camouflage their malicious activity with typical system and network behavior...

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2Ftejkh1J5OPxnSB5tWMvl%2Fimage.png?alt=media&#x26;token=fad47fc0-9ced-4849-a314-5434132fe0ec" alt=""><figcaption><p><a href="https://www.cisa.gov/sites/default/files/2024-03/aa24-038a_csa_prc_state_sponsored_actors_compromise_us_critical_infrastructure_3.pdf">https://www.cisa.gov/sites/default/files/2024-03/aa24-038a_csa_prc_state_sponsored_actors_compromise_us_critical_infrastructure_3.pdf</a></p></figcaption></figure>

{% hint style="success" %}
According to the CISA document, the primary strategy Volt Typhoon uses for defense evasion is **LOTL** (Living off the Land).
{% endhint %}
{% endstep %}

{% step %}

## In the CISA document, which file name is associated with the command potentially used to analyze logon patterns by Volt Typhoon?

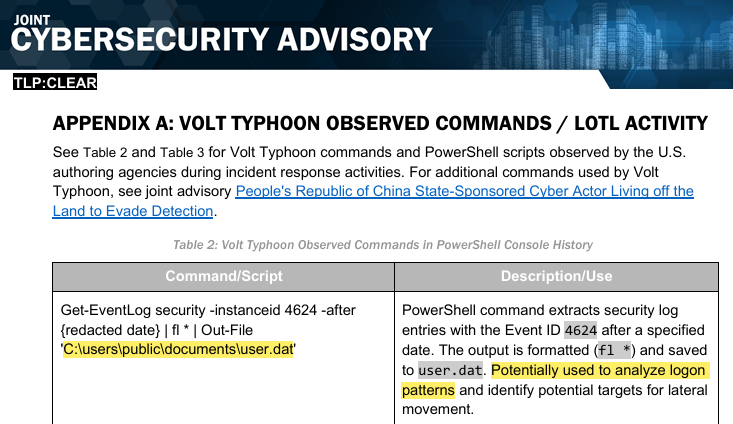

To find this answer, we need to look in the appendix of the CISA document, which lists specific commands observed during incident response. In "Table 2: Volt Typhoon Observed Commands in PowerShell Console History", we find the exact command and its output file.

<figure><img src="https://2078903645-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FW98xJQuX2kc5QKEyMN0C%2Fuploads%2FfieIQ007veZYQCMd4OPS%2Fimage.png?alt=media&#x26;token=97fed827-1e1b-4eec-9626-55c09107e681" alt=""><figcaption><p><a href="https://www.cisa.gov/sites/default/files/2024-03/aa24-038a_csa_prc_state_sponsored_actors_compromise_us_critical_infrastructure_3.pdf">https://www.cisa.gov/sites/default/files/2024-03/aa24-038a_csa_prc_state_sponsored_actors_compromise_us_critical_infrastructure_3.pdf</a></p></figcaption></figure>

{% hint style="success" %}
According to the CISA document, the file name associated with the command used to analyze logon patterns is **C:\users\public\documents\user.dat**.
{% endhint %}
{% endstep %}
{% endstepper %}

This Sherlock challenge guided us from high-level adversary tracking using the MITRE ATT\&CK framework to deep-diving into specific, time-sensitive OSINT about a zero-day vulnerability. We analyzed malware characteristics, extracted Indicators of Compromise, and parsed CISA advisories to understand the attacker's TTPs.
